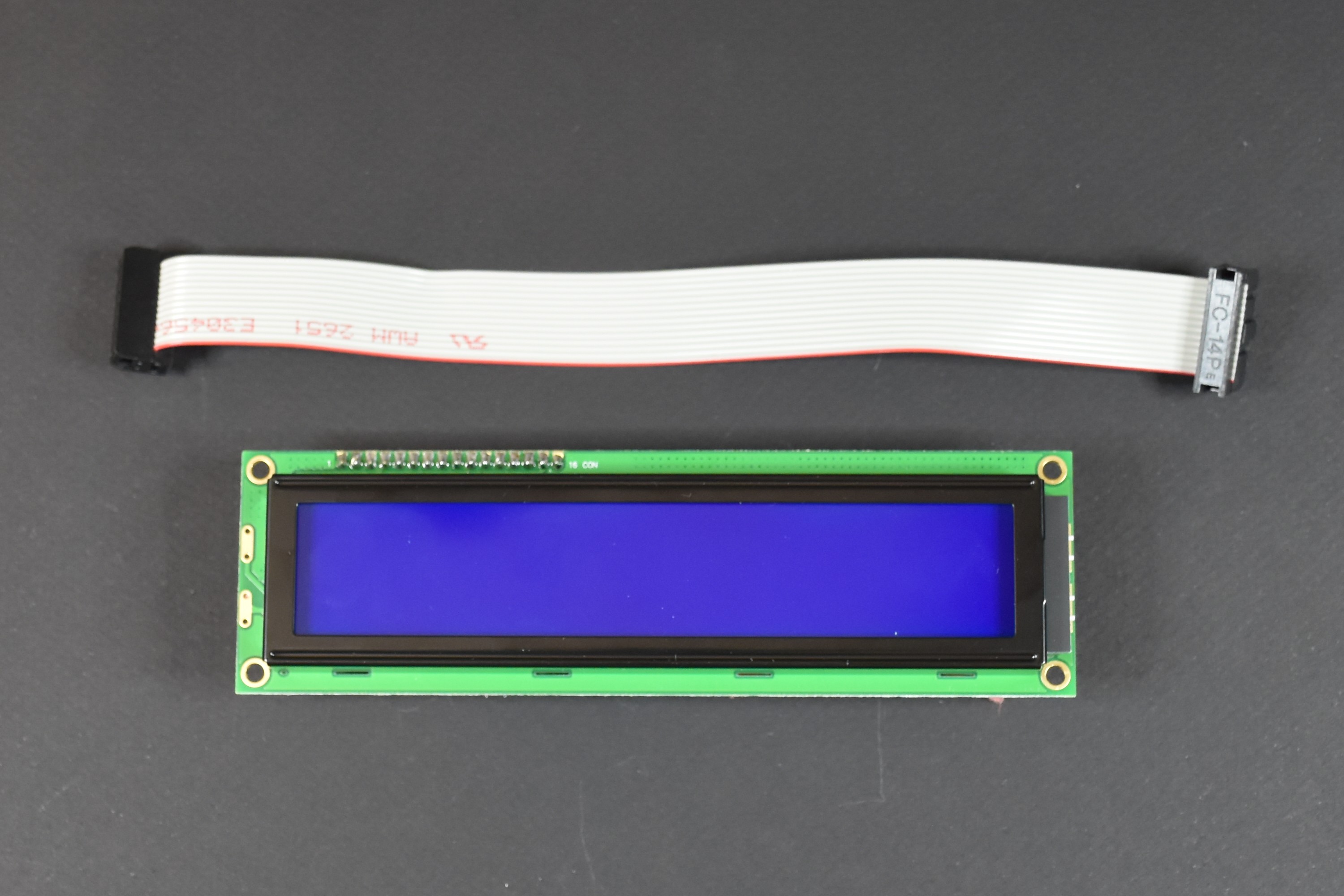

Item: WH2002M-NO
Item: WH2002M-90
Display with no harness or 90cm harness.
20 character x 2 Line Display.
Viewing area = 122mm x 23mm
Other length harnesses are available on request. For example order WH2002M-30 for a 30cm harness.
CWC100 CONTROLLERS
For Car Wash Entry and Changer applications

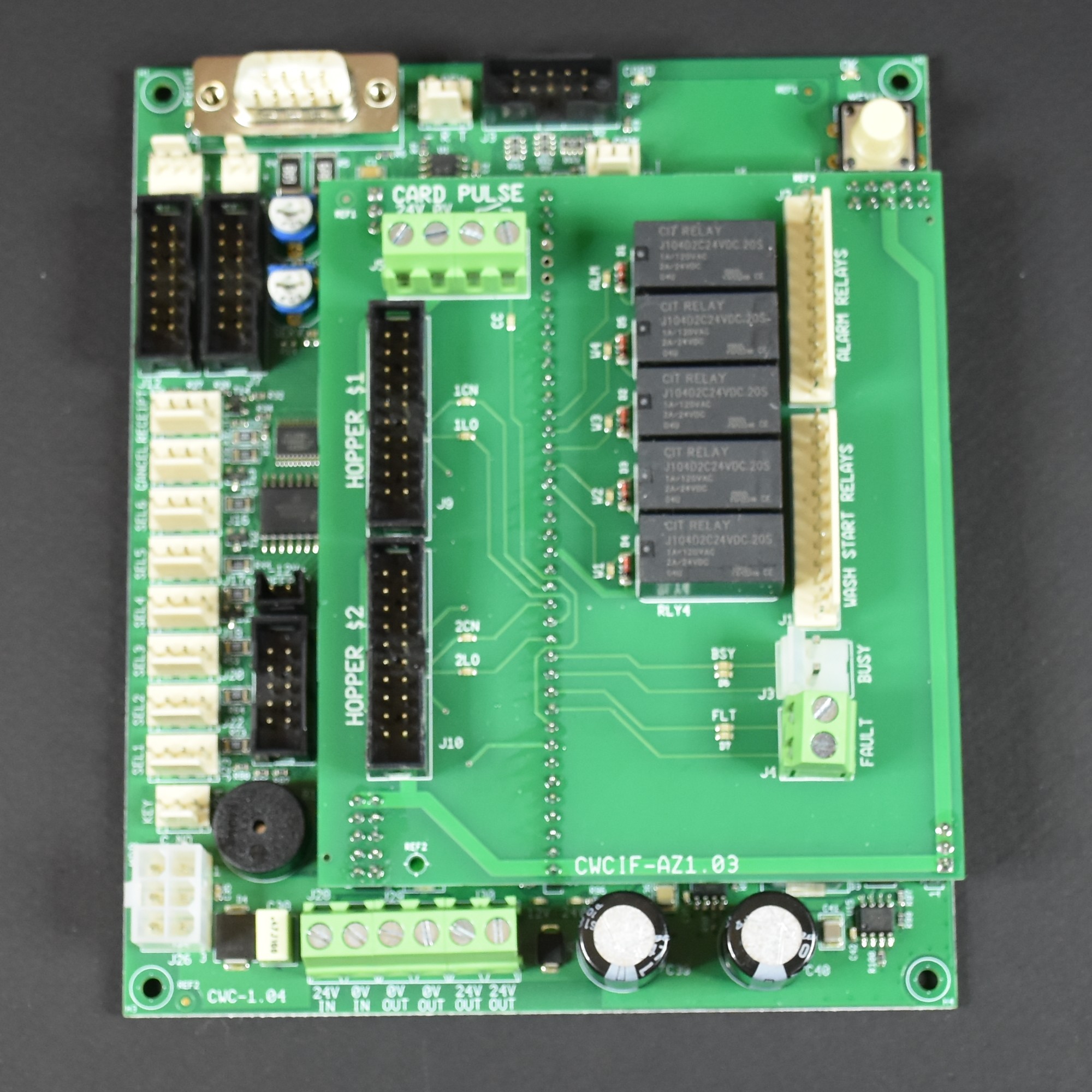

Item: CWC100-AZ
Anztec Car wash Entry Controller with interface and software suitable for replacing Anztec Car wash Entry Systems.
Refer to the CWC100 ACCESSORIES section below and order the following items to complete the system.
Customer Display WH2002x-xx.
Optional - Service Display WH2002x-xx.
Keypad MDBCON103-60 or MDBCON104-60
SW-xxxx-83 Wash Selection, Receipt Print and Cancel illuminated push buttons.
Optional - DEX-CABLE
Optional - SD-32. Can be shared between several machines.

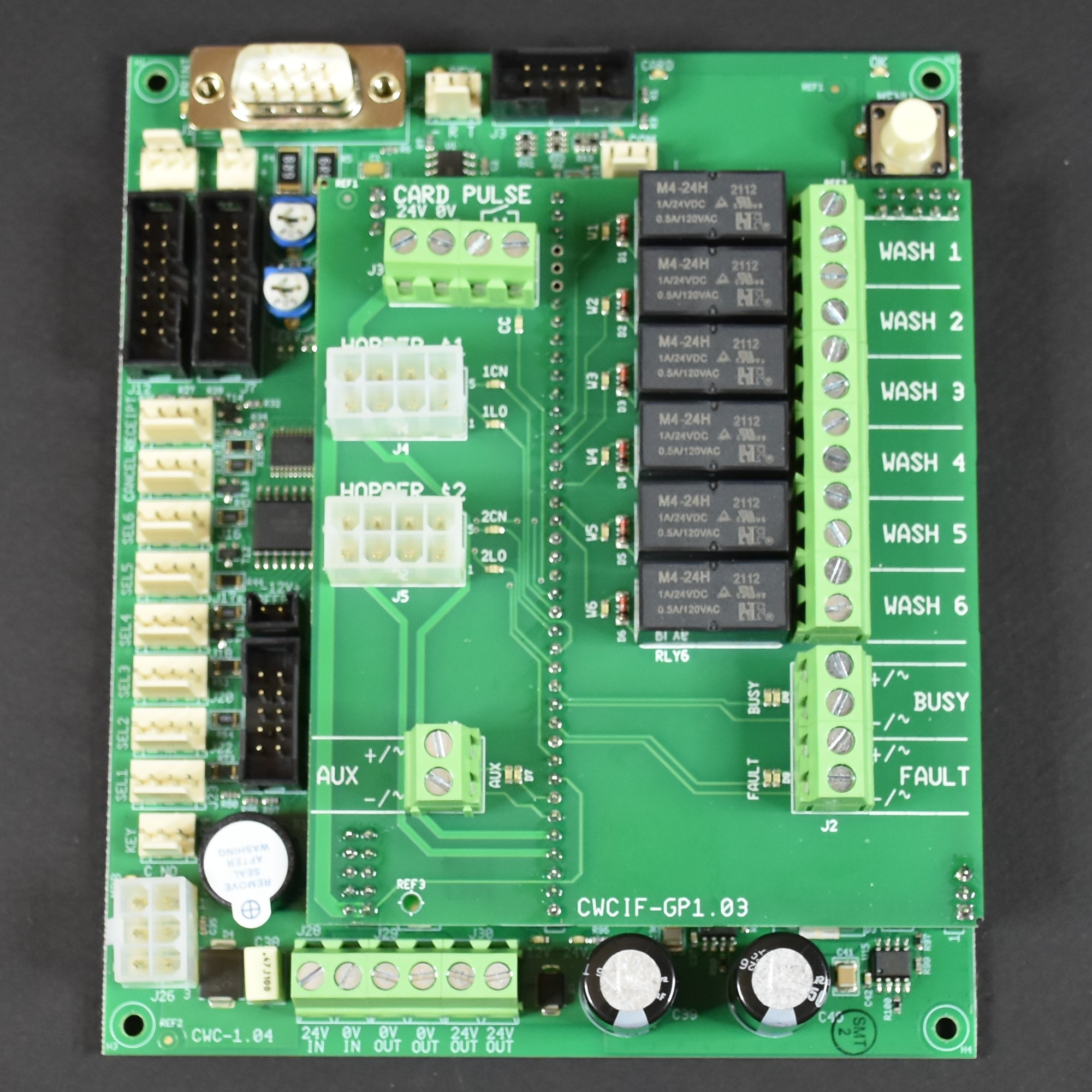

Item: CWC100-GP
Car wash Entry Controller with interface and software suitable for building custom Car wash Entry Systems.
Refer to the CWC100 ACCESSORIES section below and order the following items to complete the system.
Customer Display WH2002x-xx.
Optional - Service Display WH2002x-xx.
Keypad MDBCON103-60 or MDBCON104-60
SW-xxxx-83 Wash Selection, Receipt Print and Cancel illuminated push buttons.
Optional - DEX-CABLE
Optional - SD-32. Can be shared between several machines.

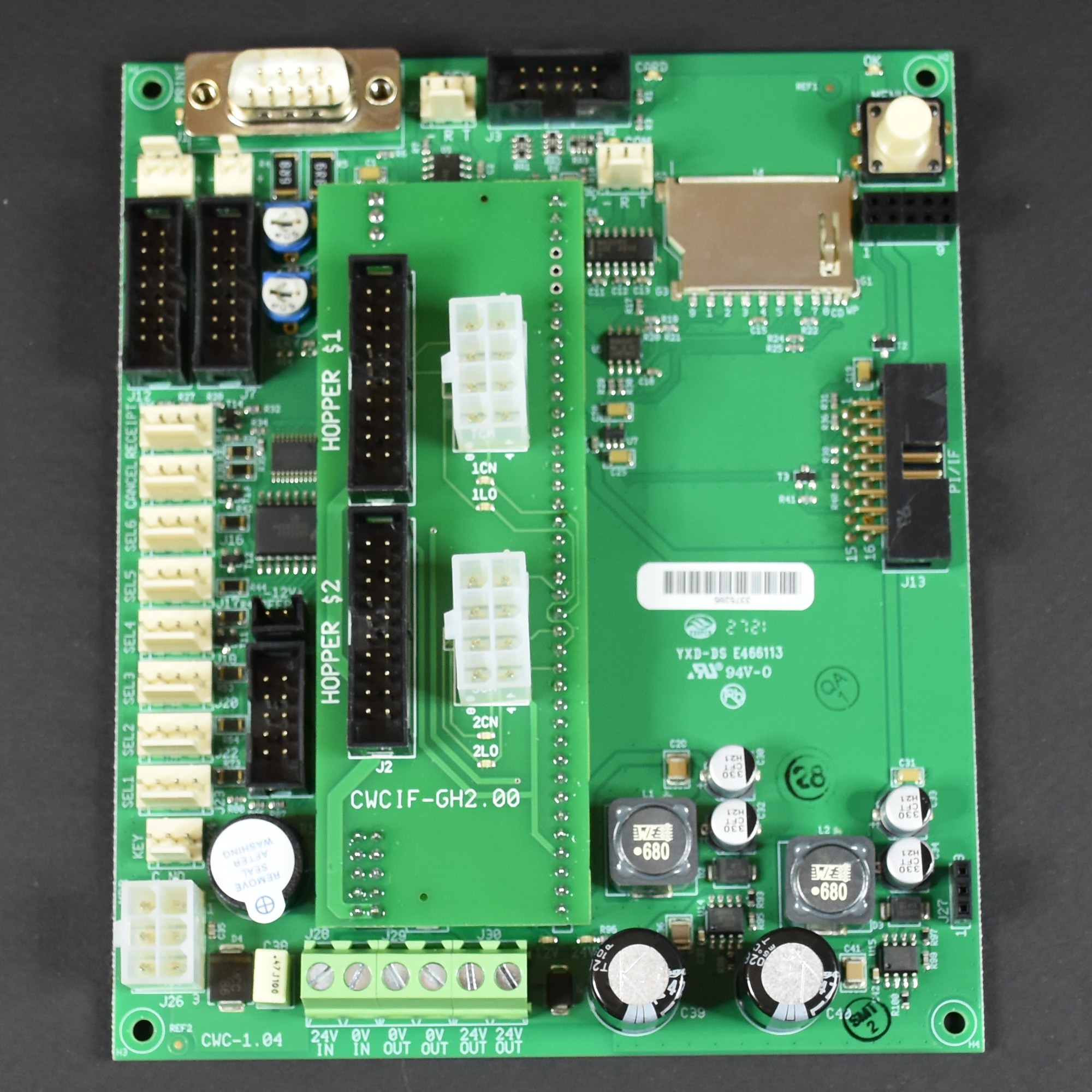

Item: CWC100-CH
Change Dispenser Controller with interface and software suitable for change giving applications.
Refer to the CWC100 ACCESSORIES section below and order the following items to complete the system.
Optional - Display WH2002x-xx.
Optional - Service Display WH2002x-xx.
Keypad MDBCON103-60 or MDBCON104-60
Optional - SW-xxxx-83 Wash Selection, Receipt Print and Cancel illuminated push buttons.
Optional - DEX-CABLE
Optional - SD-32. Can be shared between several machines.
CWC100 ACCESSORIES
The following accessories can be used with the CWC100 based products.

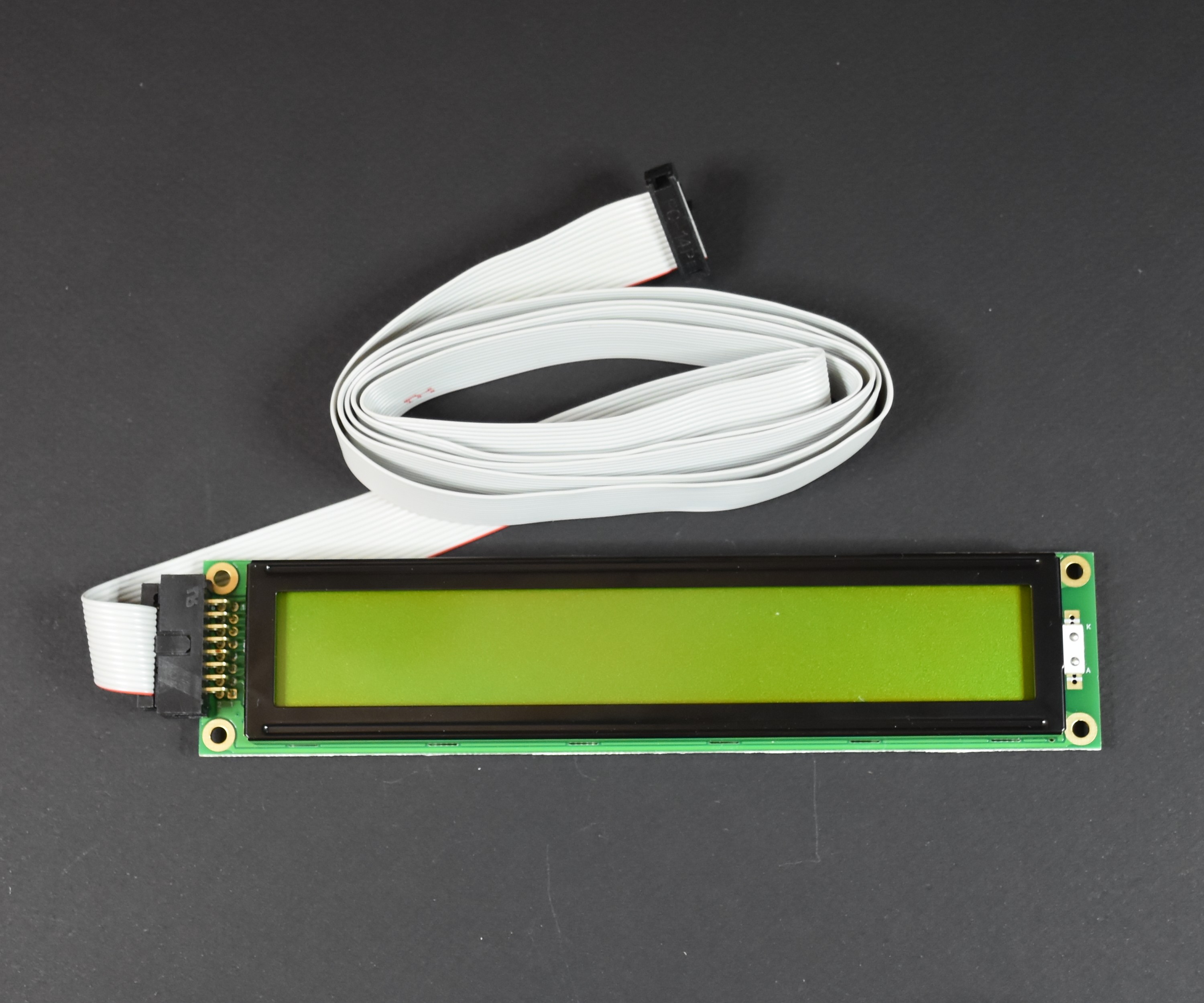

Item: WH2002L-90
Display with 90cm harness.
20 character x 2 Line Display.
Viewing area = 149mm x 23mm
Matches original Anztec display
Other length harnesses are available on request. For example order WH2002L-30 for a 30cm harness.

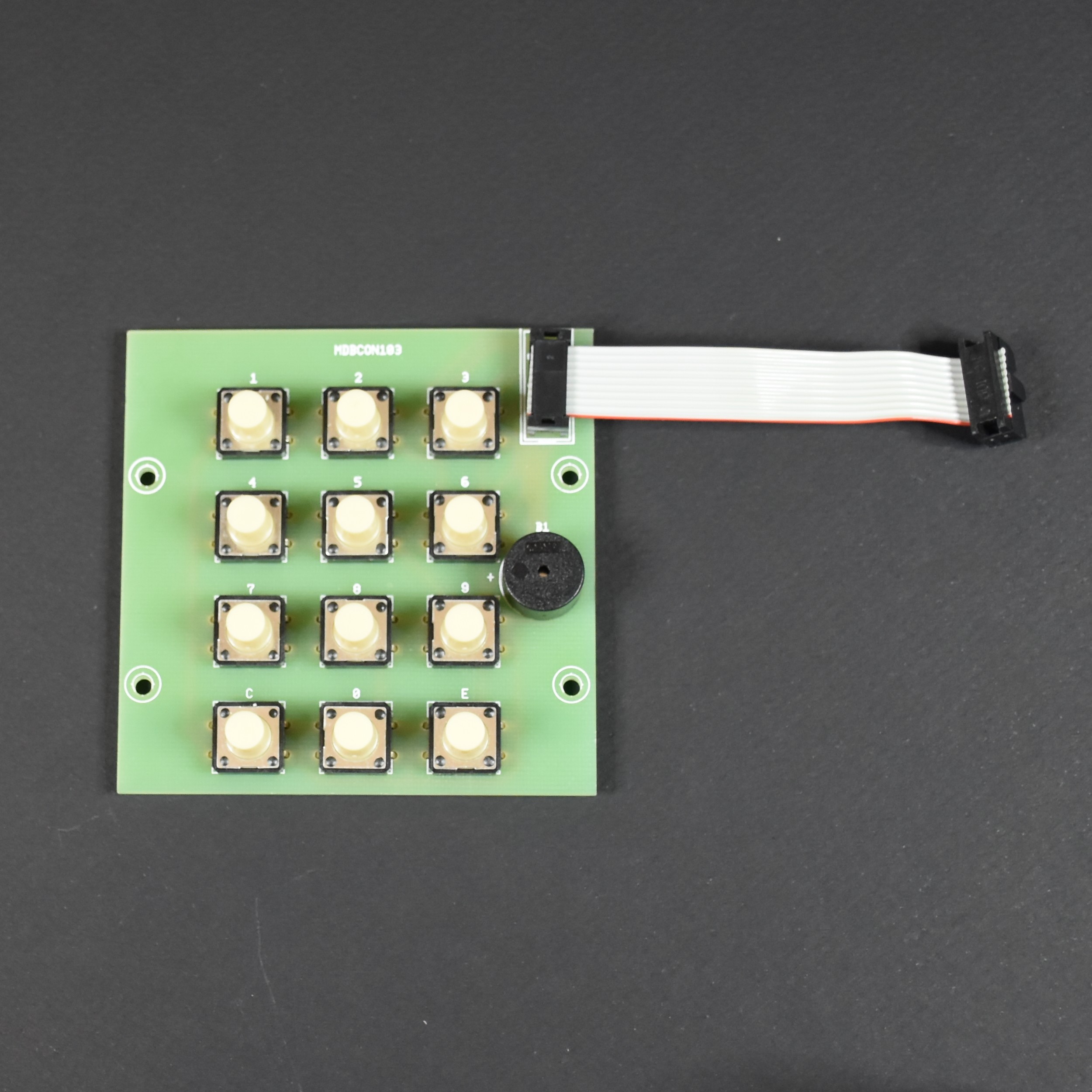

Item: MDBCON103-07
Item: MDBCON103-60
Programming Keypad with 7 or 60 cm harness.
Other length harnesses are available on request. For example order MDBCON103-30 for a 30cm harness.

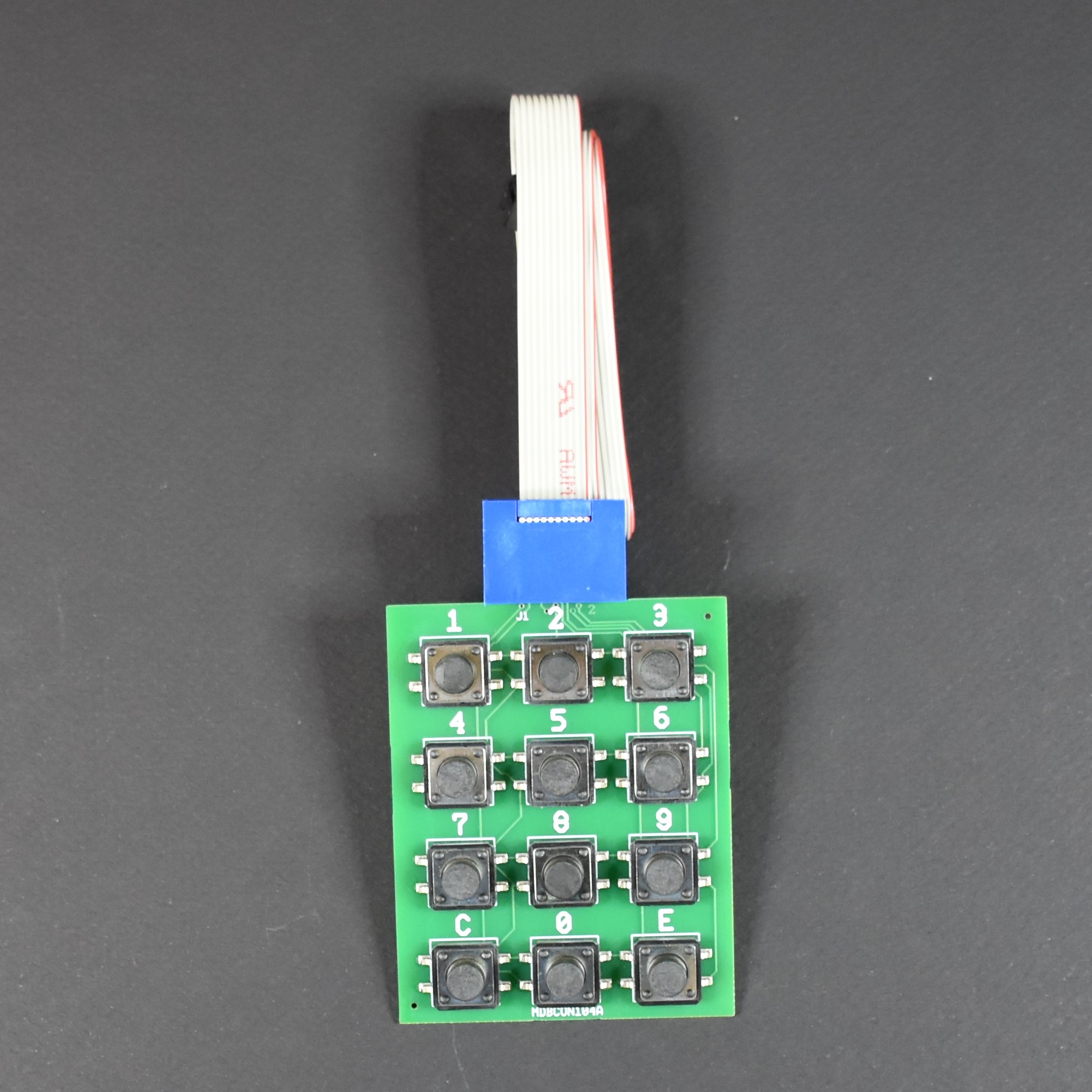

Item: MDBCON104-60
Handheld Programming Keypad with 60cm harness.

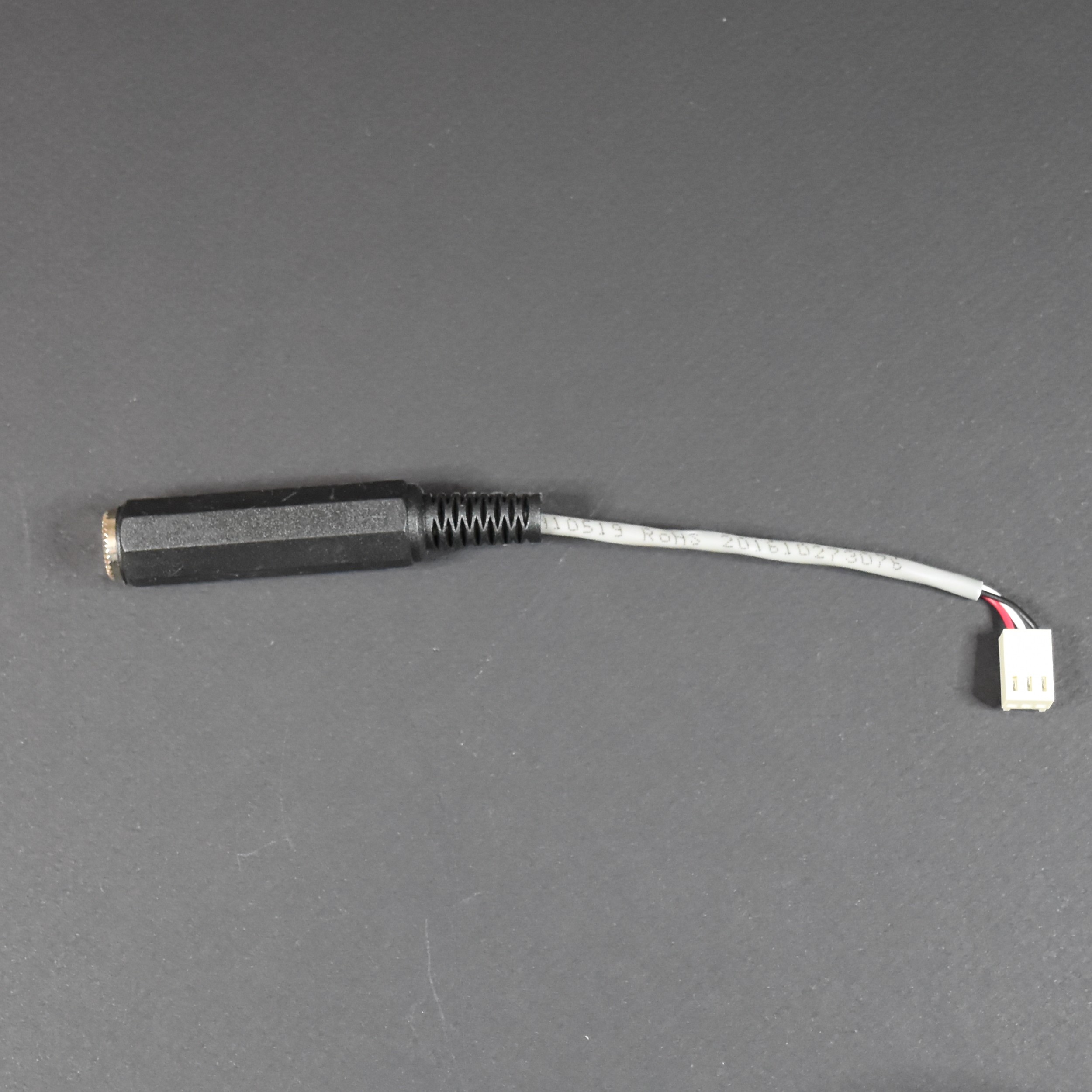

Item: DEX-CABLE
Dex interface harness used to connect the controller to a DEX readout device via a 1/4 inch Stereo jack.

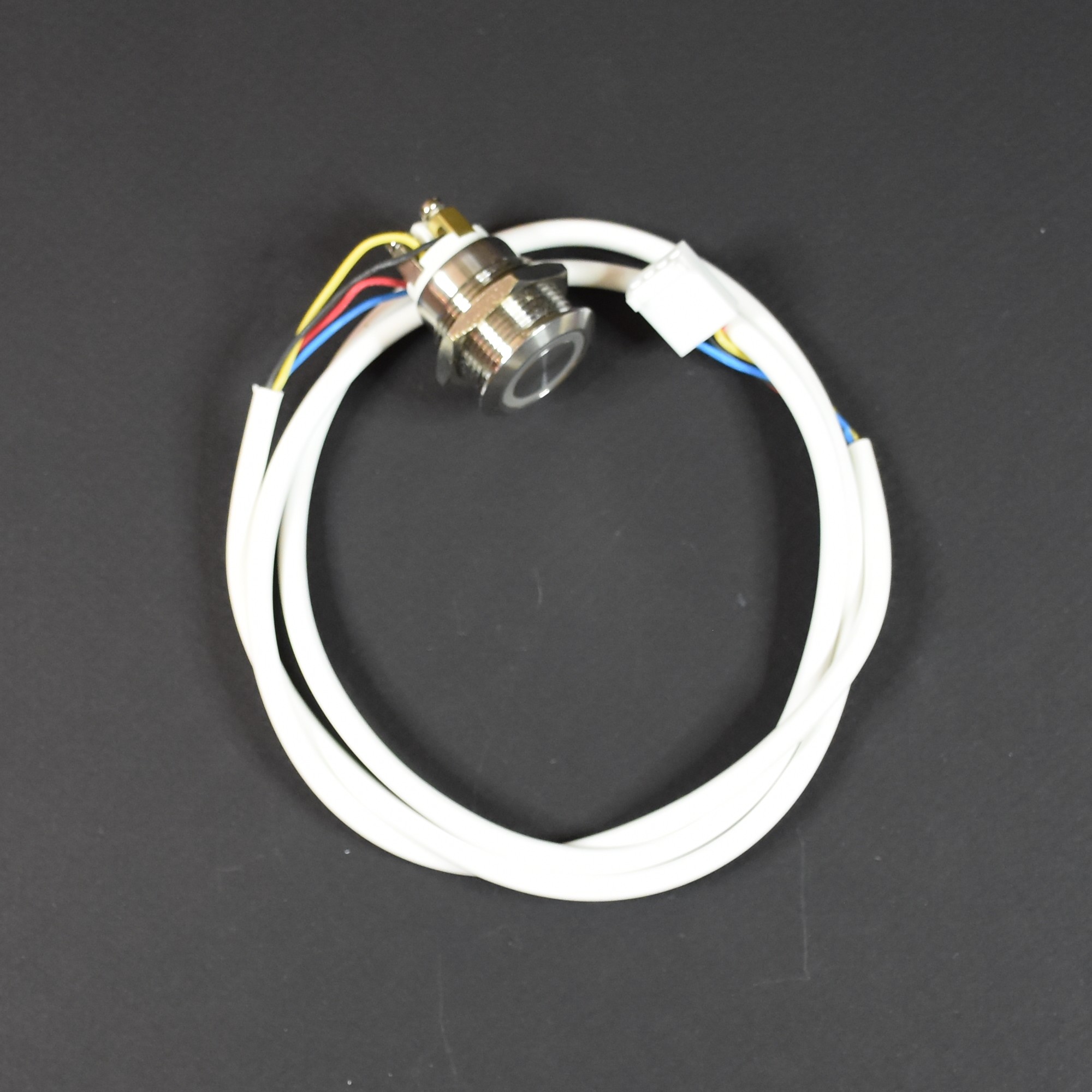

Item: SW-BLUE-83
Item: SW-RED-83
Item: SW-GREEN-83
Illuminated Push button with 83cm harness.

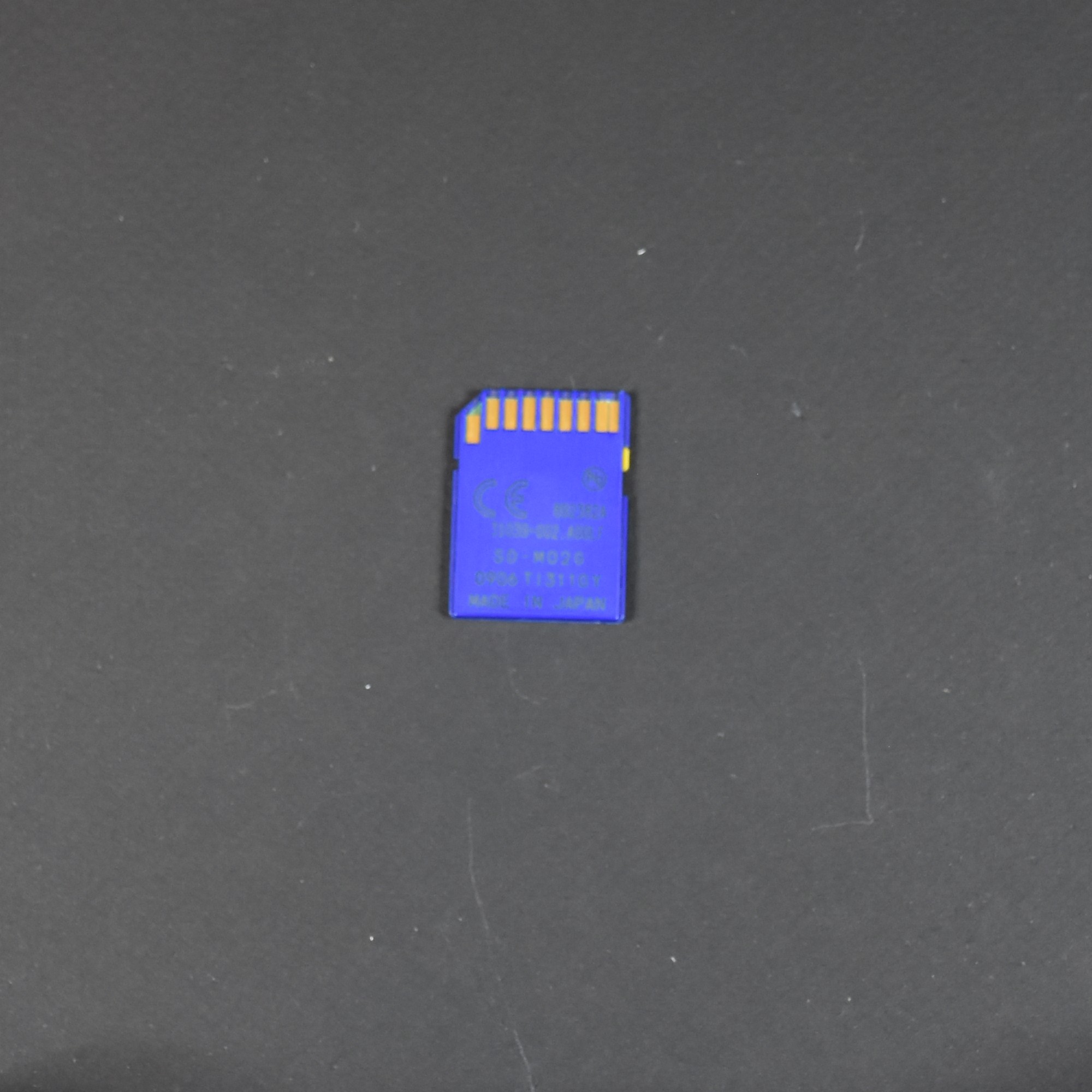

Item: SD-32
SD card with FAT32 format. Used to update operating software when required. Also used to load receipt configuration files into controller.
Note:
A single SD card can be shared between several machines.
The SD-32 is not compatible with older controller types.
A SD-16 can be used with a CWC100 controller.
