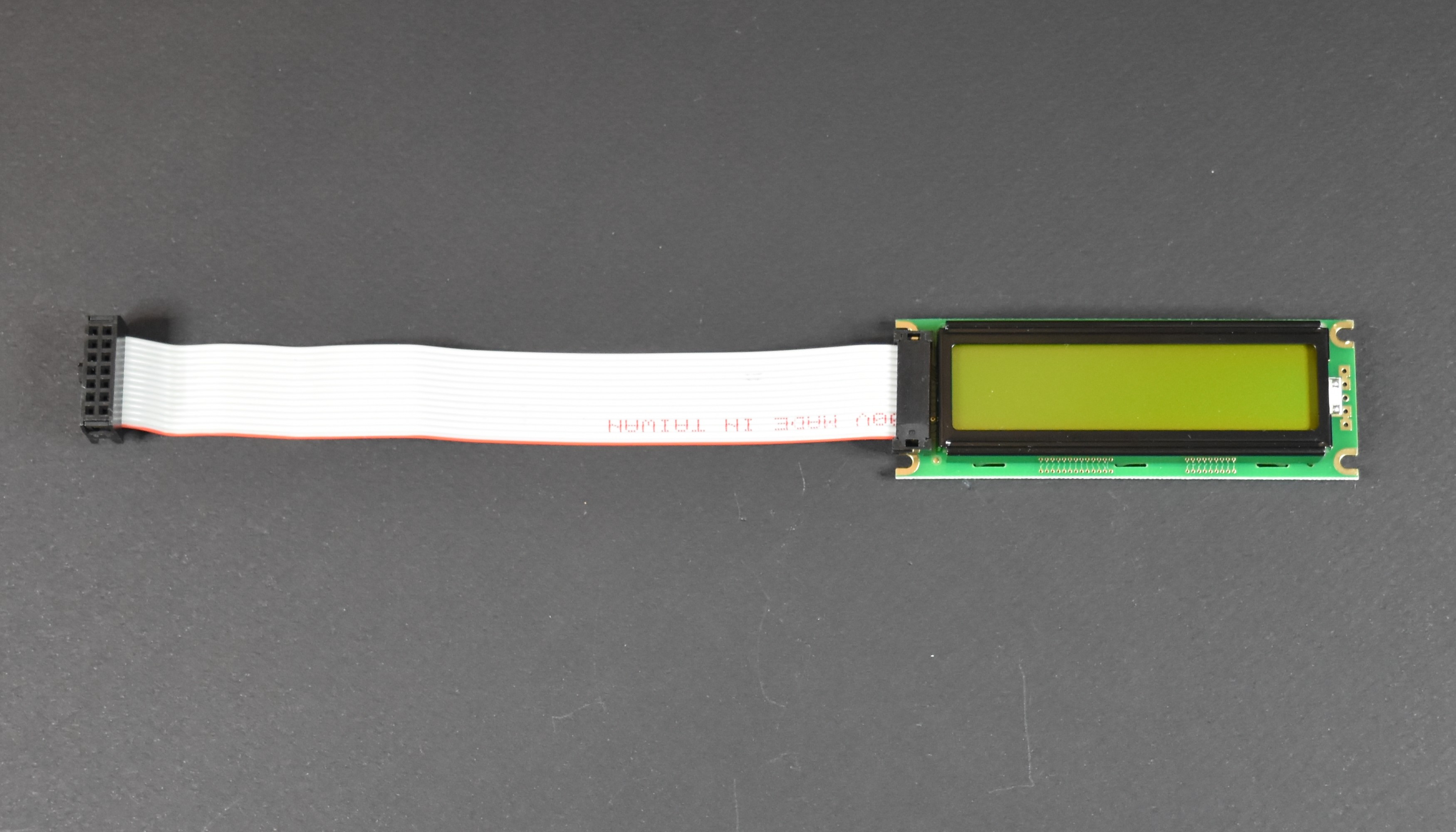

Item: WH1602D-15
Display with 15cm harness.
16 character x 2 Line Display.
Viewing area = 66mm x 15mm.
Other length harnesses are available on request. For example order WH1602D-30 for a 30cm harness.
MDBVMC 200 CONTROLLERS
For Vending Machine Applications

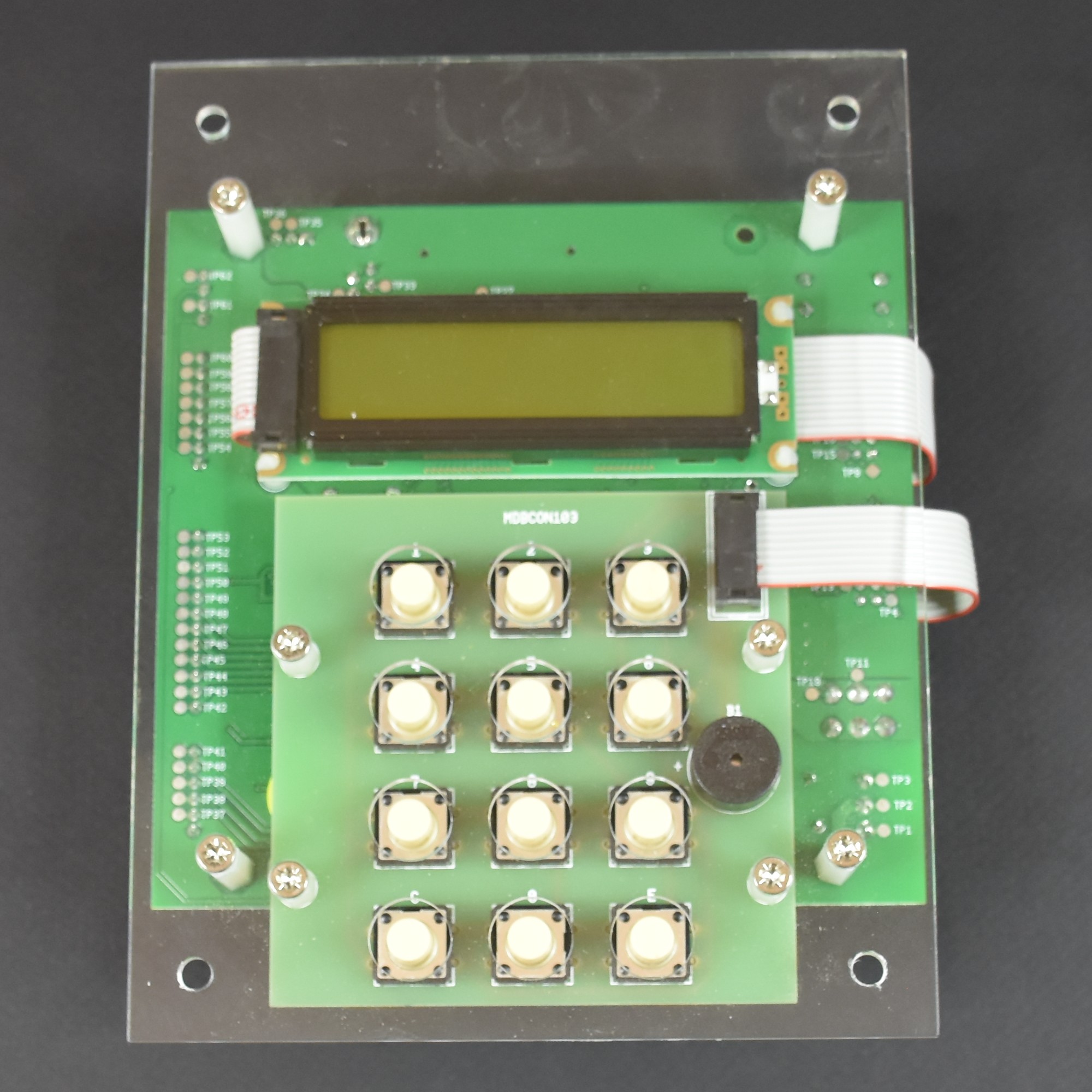

Item: RPV200
Retrofit Kit for RP Vending machines. Kit includes:
MDBVMC-20X controller with STD application software installed.
2 Line x 16 Character Display (Item: WH1602D-15)
Keypad (Item: MDBCON103-07)
Acrylic mounting plate
Dex interface cable (Item: DEX-CABLE)
RADPT101 motor harness interface board - Note harness between MDBVMC20X and RADPT101 is not included.
Refer to the MDBVMC200 ACCESSORIES section below and order the following optional items as required.
D-SENSOR-1
SD-16

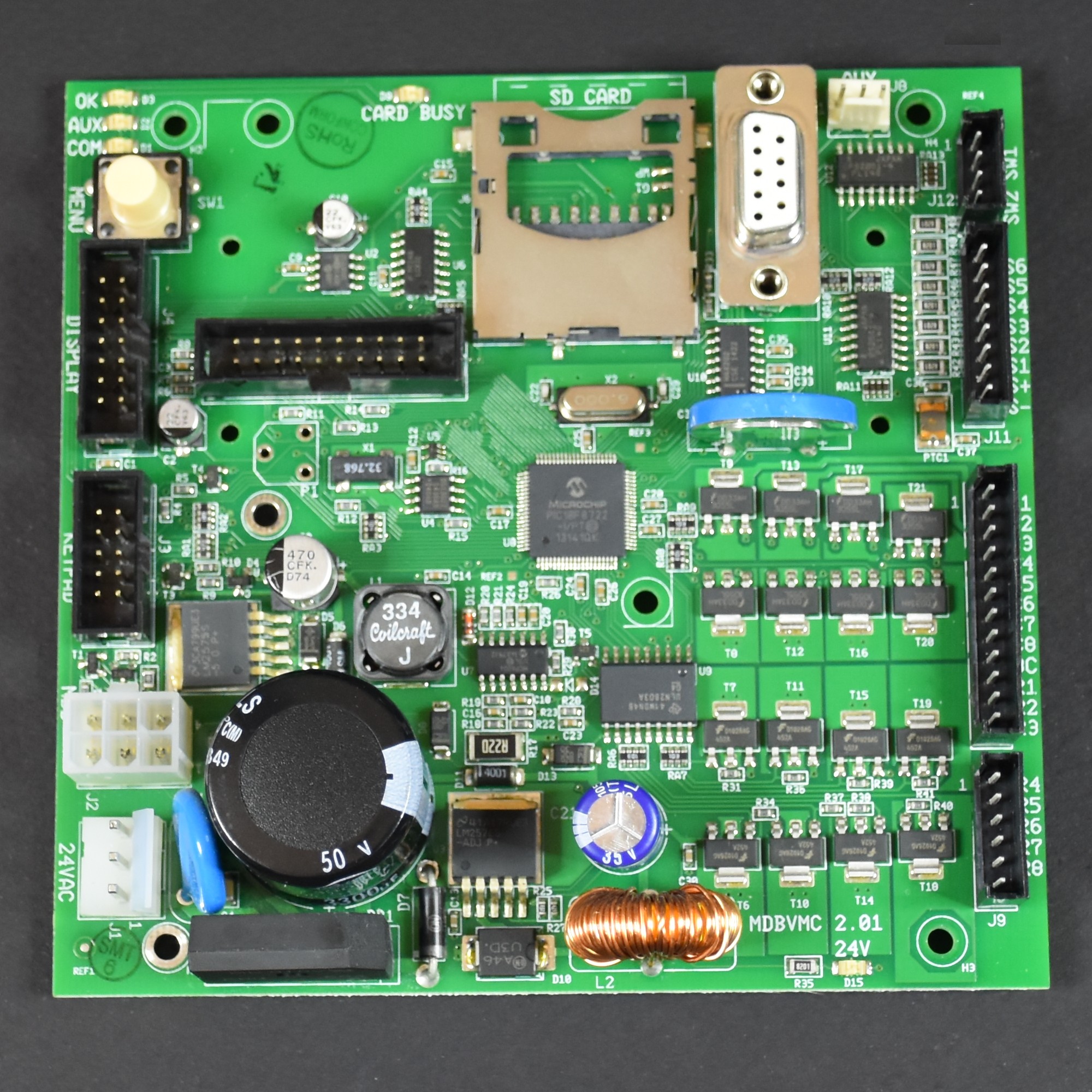

Item: MDBVMC200-STD
MDBVMC20X Vending machine controller. Supplied with STD application software installed - Contact sales to discuss other application software.
Refer to the MDBVMC200 ACCESSORIES section below and order the following items to complete the system.
WH1602D-xx or WH2002M-xx.
MDBCON103-xx.
Optional - DEX-CABLE
Optional - D-SENSOR-1
Optional - SD-16
MDBVMC200 ACCESSORIES
The following accessories can be used with the MDBVMC200 based products.

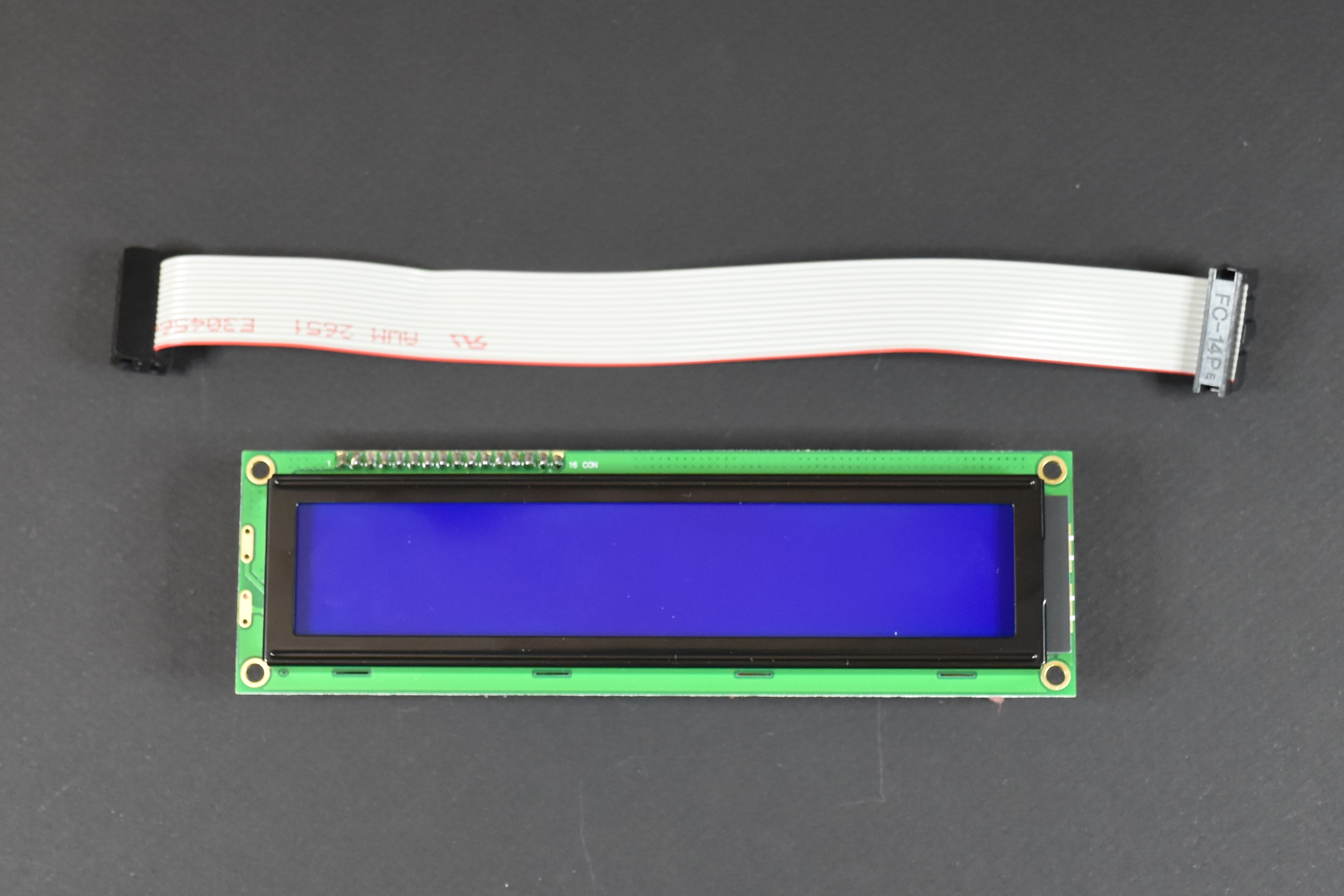

Item: WH2002M-NO
Item: WH2002M-90
Display with no harness or 90cm harness.
20 character x 2 Line Display.
Viewing area = 122mm x 23mm
Other length harnesses are available on request. For example order WH2002M-30 for a 30cm harness.

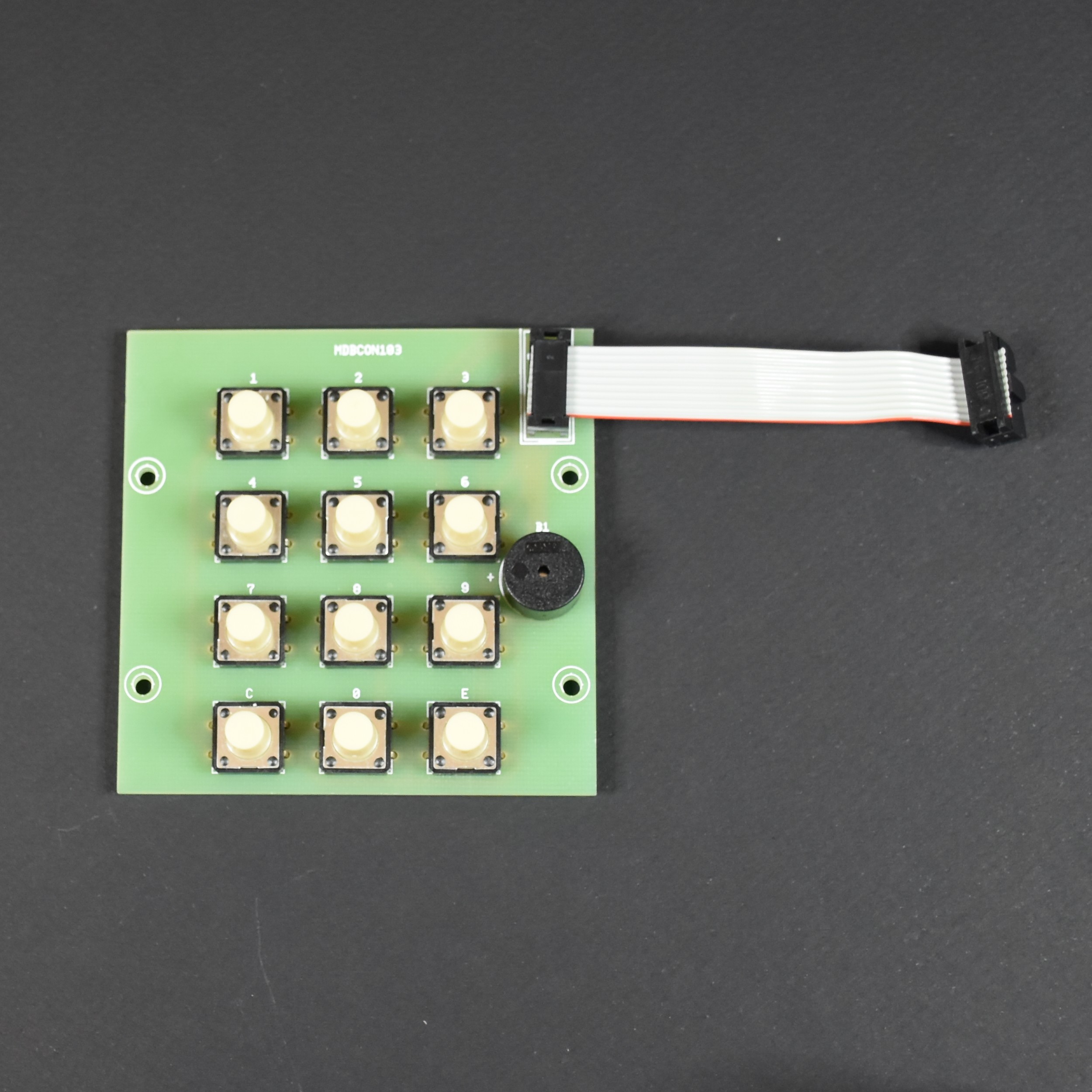

Item: MDBCON103-07
Item: MDBCON103-60
Customer / programming Keypad with 7 or 60 cm harness.
Other length harnesses are available on request. For example order MDBCON103-30 for a 30cm harness.

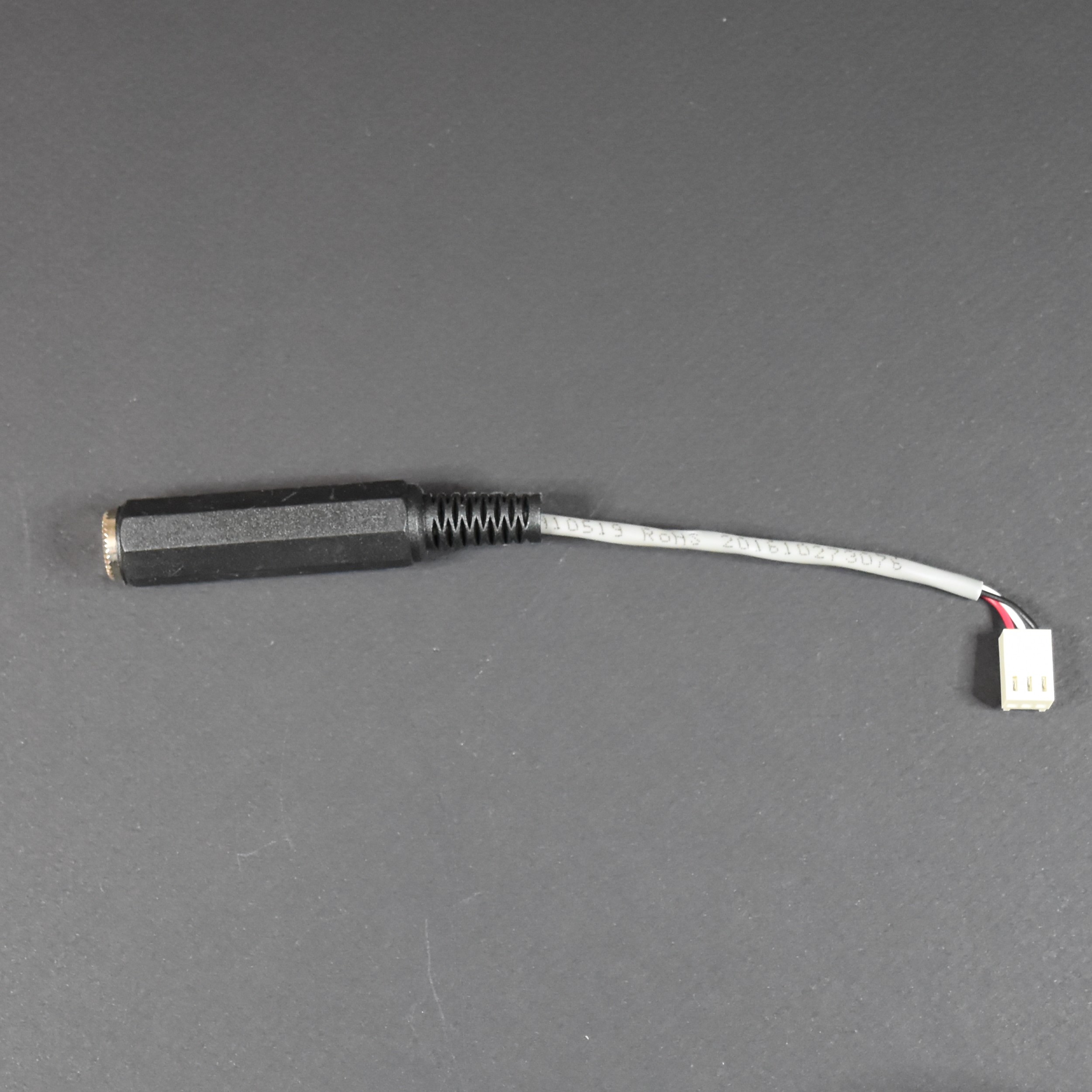

Item: DEX-CABLE
Dex interface harness used to connect the controller to a DEX readout device via a 1/4 inch Stereo jack.

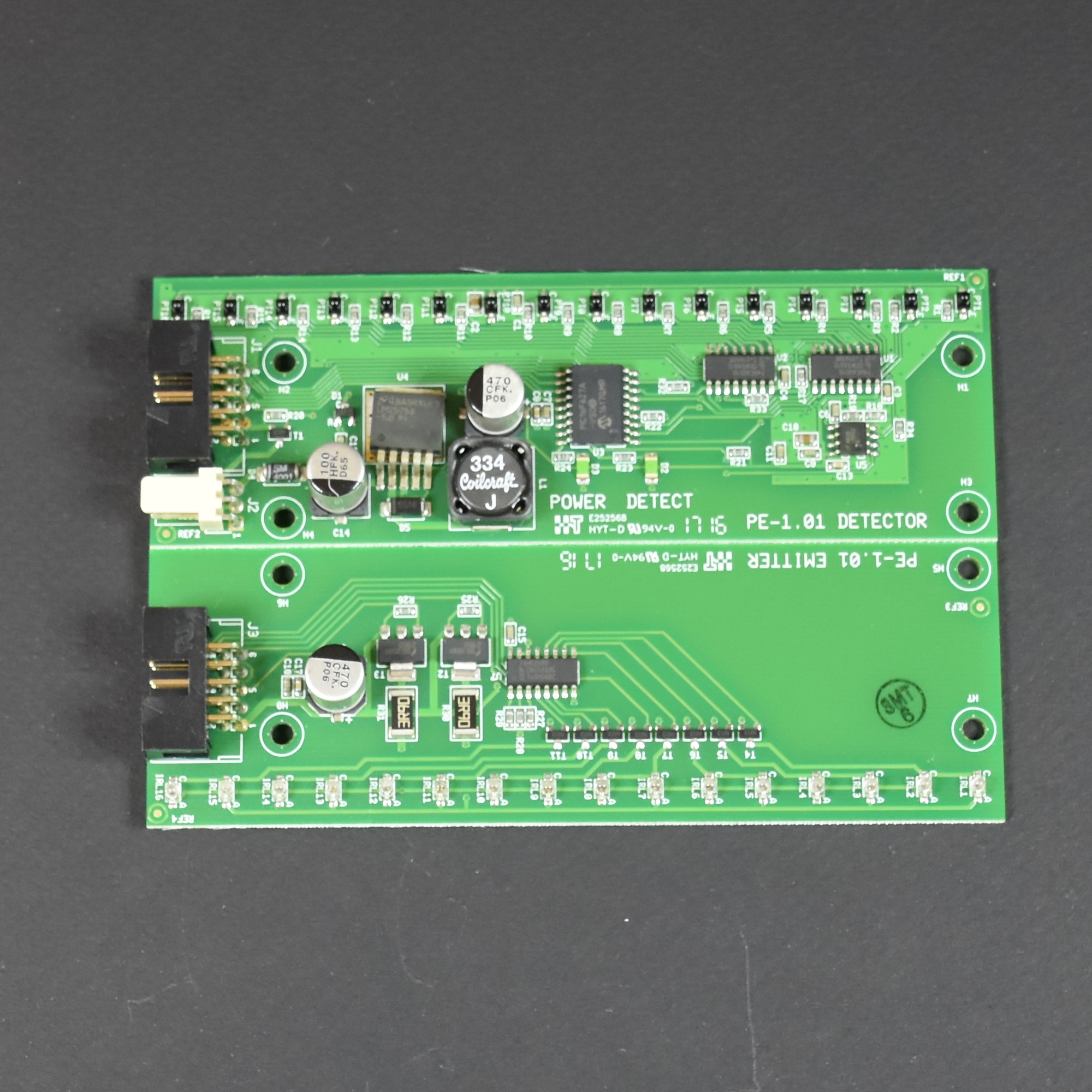

Item: D-SENSOR-1
Optical product drop sensor. Note: harnesses are not supplied.

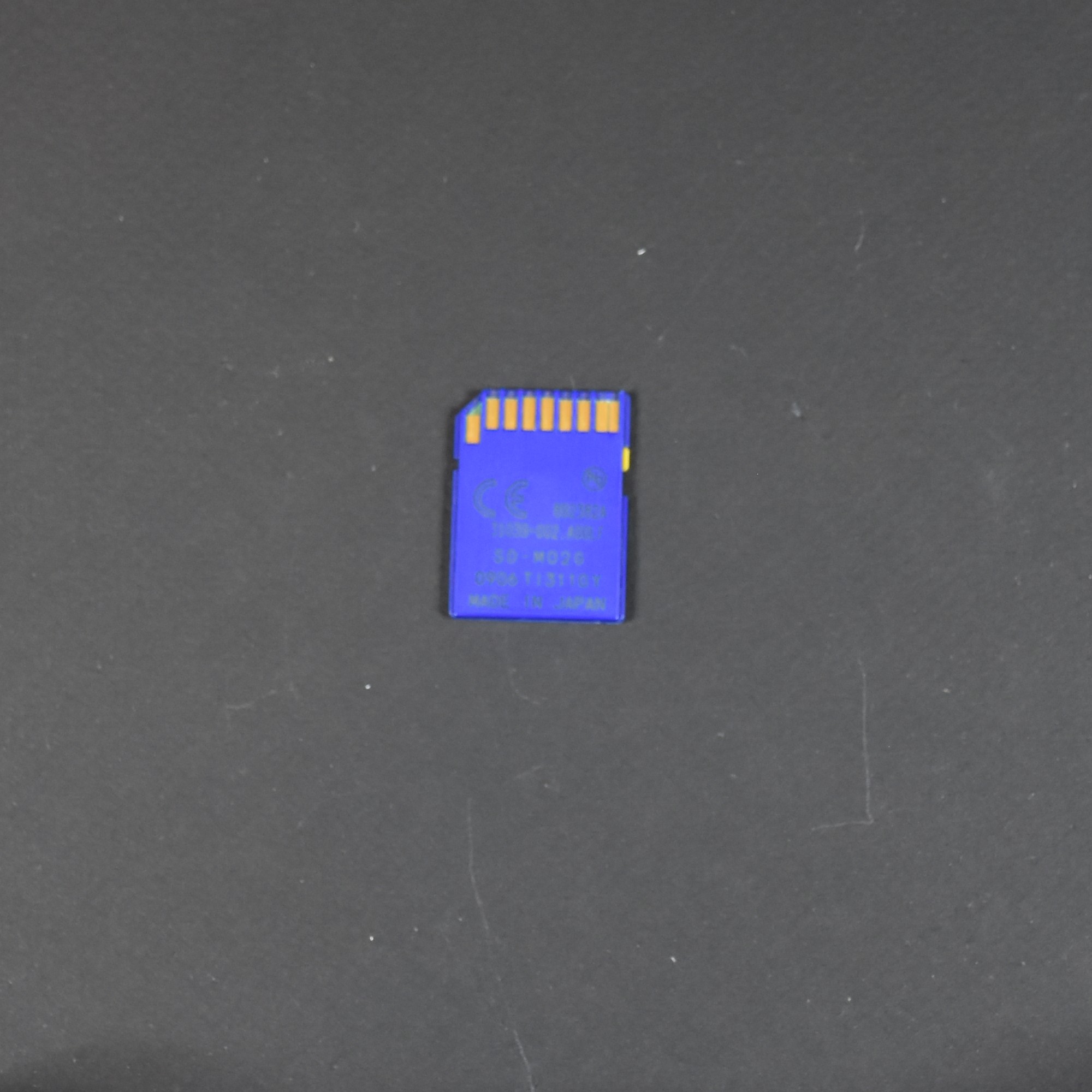

Item: SD-16
SD card with FAT16 format.
Used to update operating software when required.
Note:
A single SD card can be shared between several machines.
A SD-32 can't be used with a MDBVMC200 controller.
