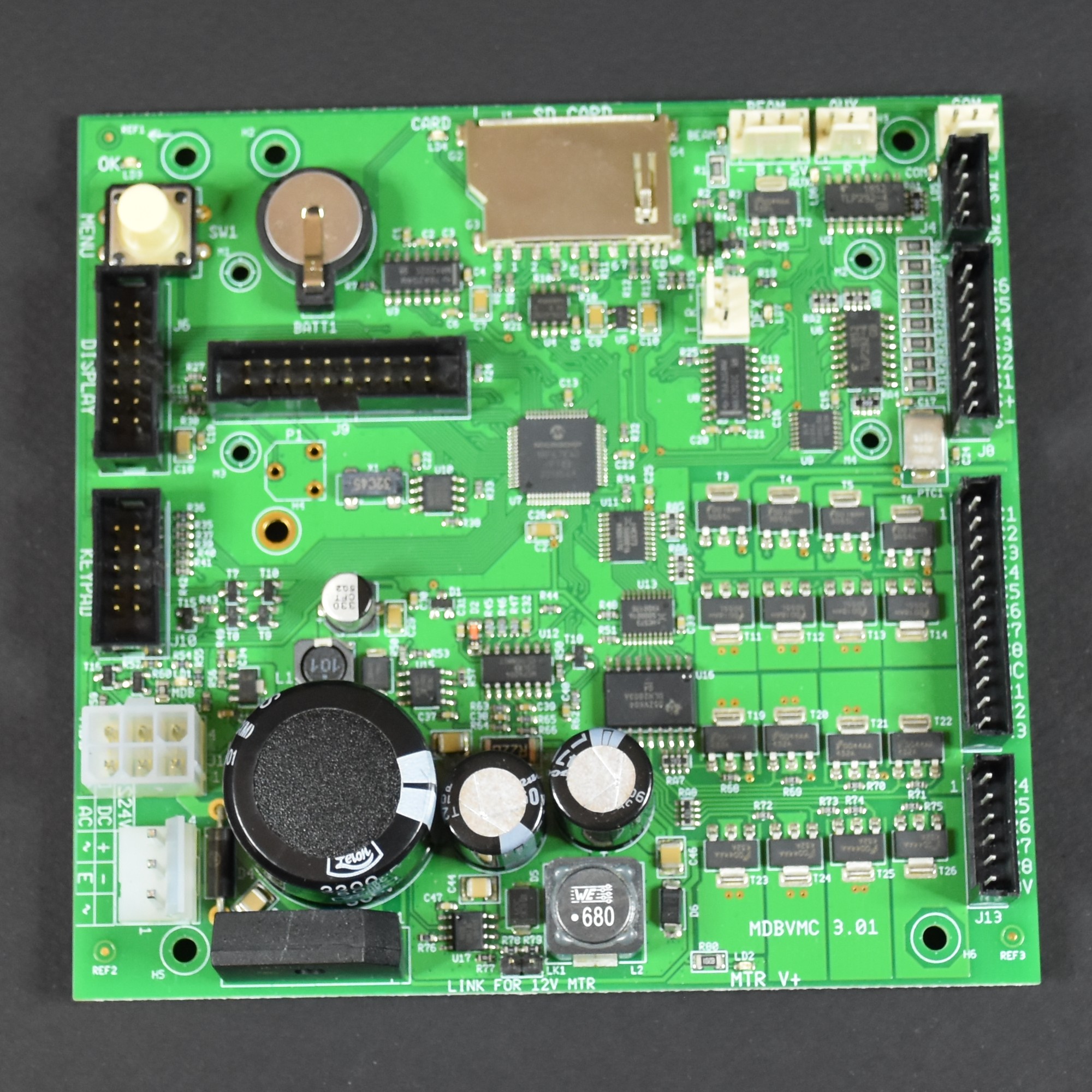

MDBVMC 300 CONTROLLERS

For Vending Machine Applications

Item: MDBVMC300

MDBVMC30X Next generation of Vending machine controller. Supplied with STD application software installed - Contact sales to discuss other application software.

Refer to the MDBVMC300 ACCESSORIES section below and order the following items to complete the system.

  • WH1602D-xx or WH2002M-xx.

  • MDBCON103-xx.

  • Optional - DEX-CABLE

  • Optional - D-SENSOR-1

  • Optional - SD-32

MDBVMC300  ACCESSORIES

The following accessories can be used with the MDBVMC300 based products.

Item: WH1602D-15

  • Display with 15cm harness.

  • 16 character x 2 Line Display.

  • Viewing area = 66mm x 15mm.

  • Other length harnesses are available on request. For example order WH1602D-30 for a 30cm harness.

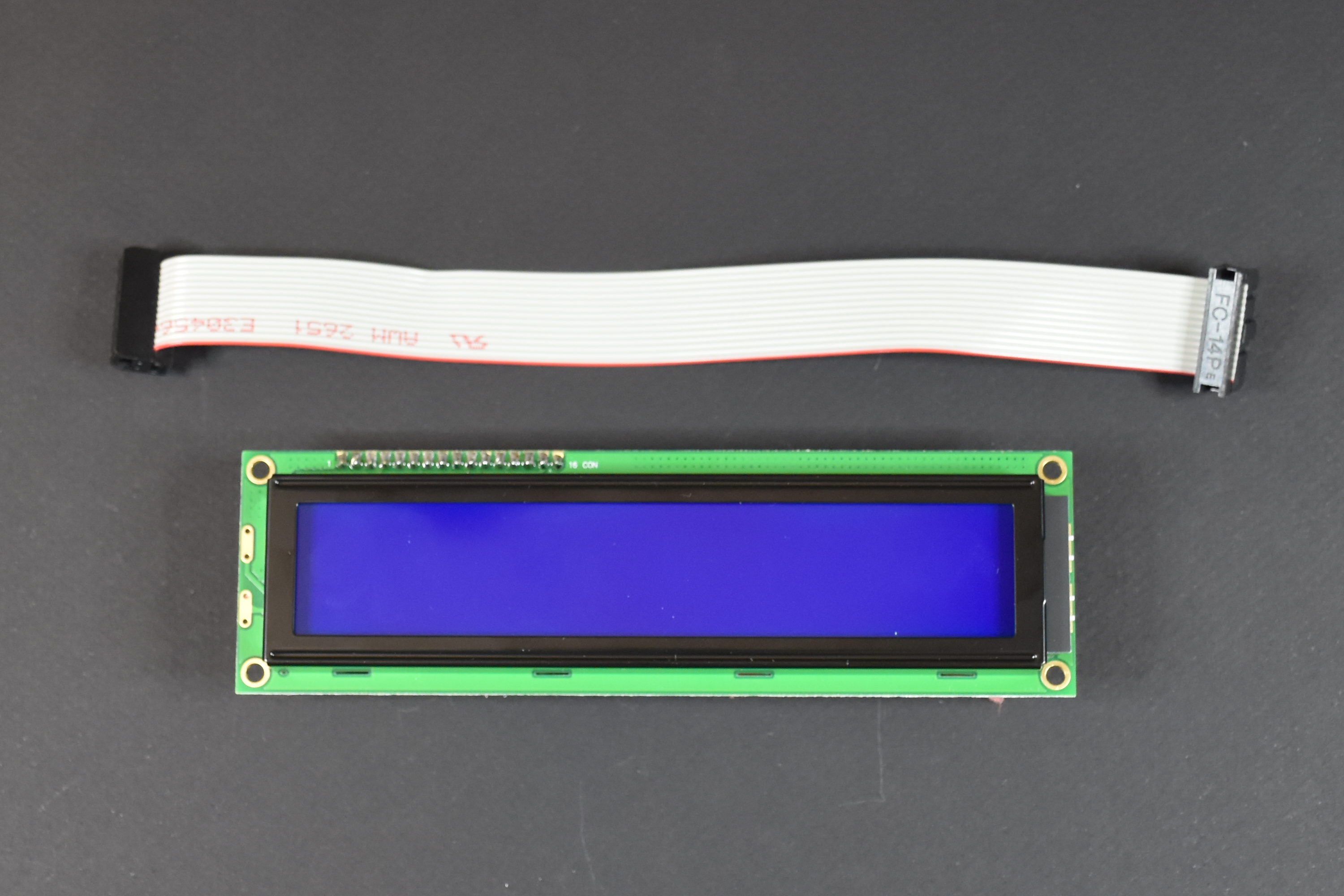

Item: WH2002M-NO

Item: WH2002M-90

  • Display with no harness or 90cm harness.

  • 20 character x 2 Line Display.

  • Viewing area = 122mm x 23mm

  • Other length harnesses are available on request. For example order WH2002M-30 for a 30cm harness.

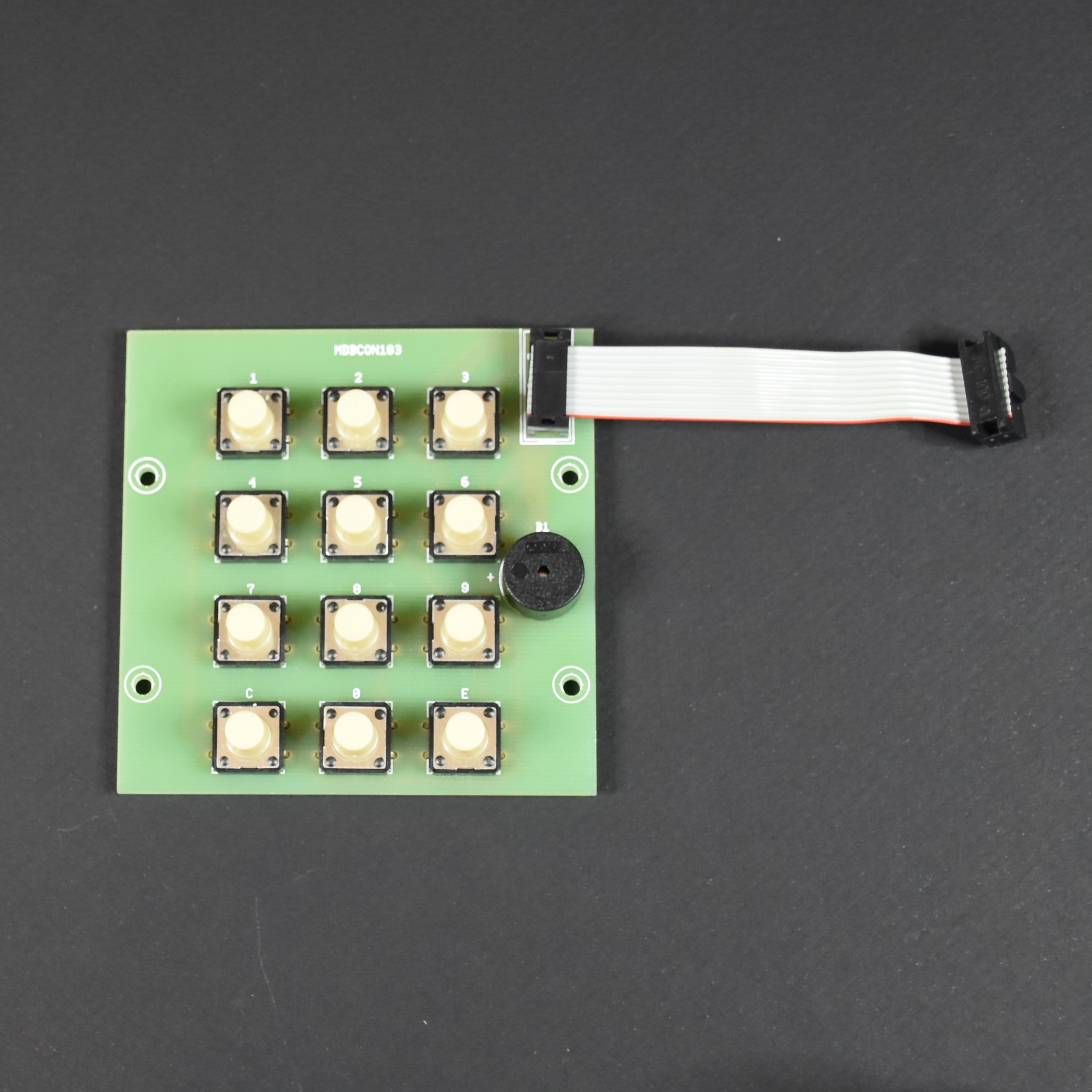

Item: MDBCON103-07

Item: MDBCON103-60

  • Customer / programming Keypad with 7 or 60 cm harness.

  • Other length harnesses are available on request. For example order MDBCON103-30 for a 30cm harness.

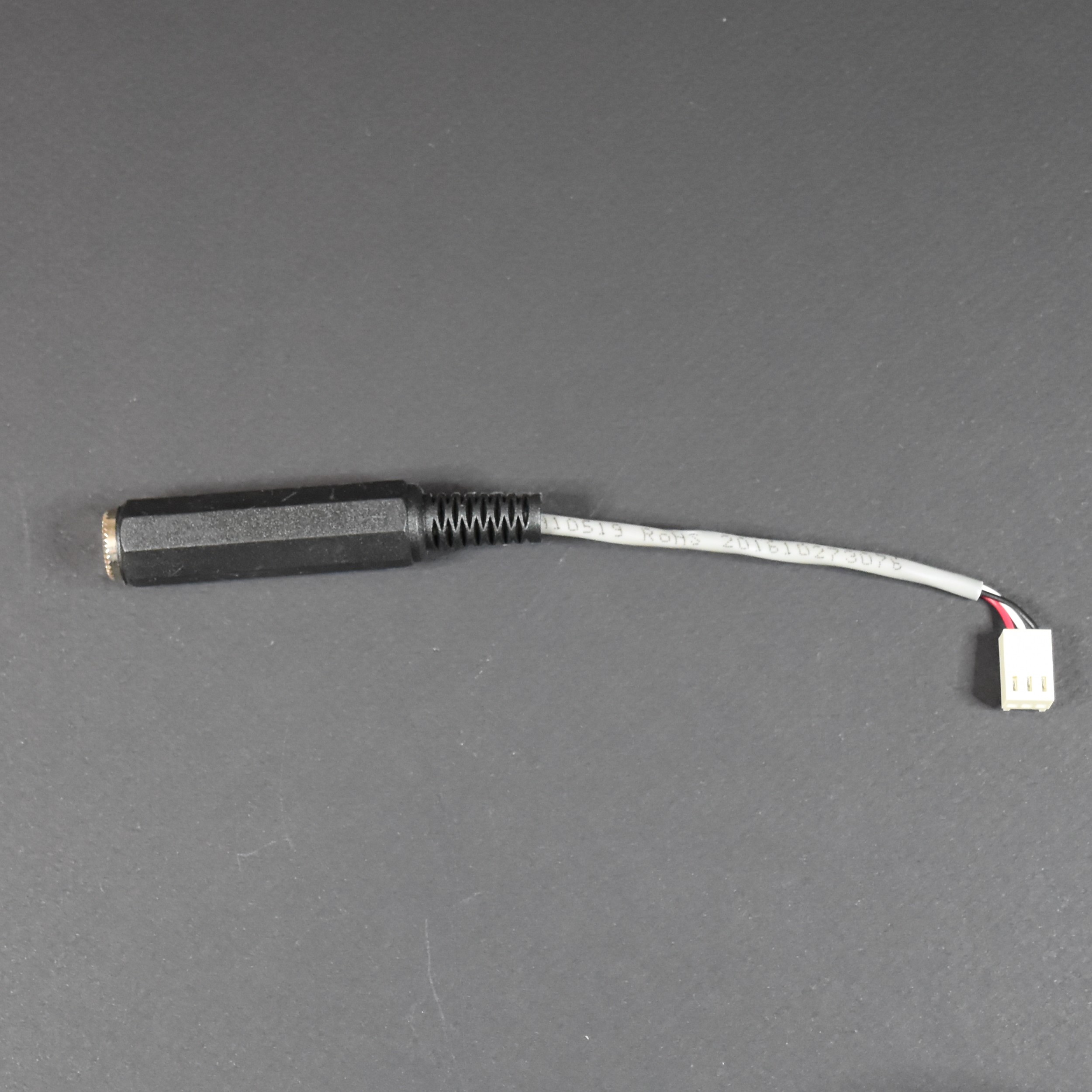

Item: DEX-CABLE

Dex interface harness used to connect the controller to a DEX readout device via a 1/4 inch Stereo jack.

Item: D-SENSOR-1

Optical product drop sensor.  Note: harnesses are not supplied.

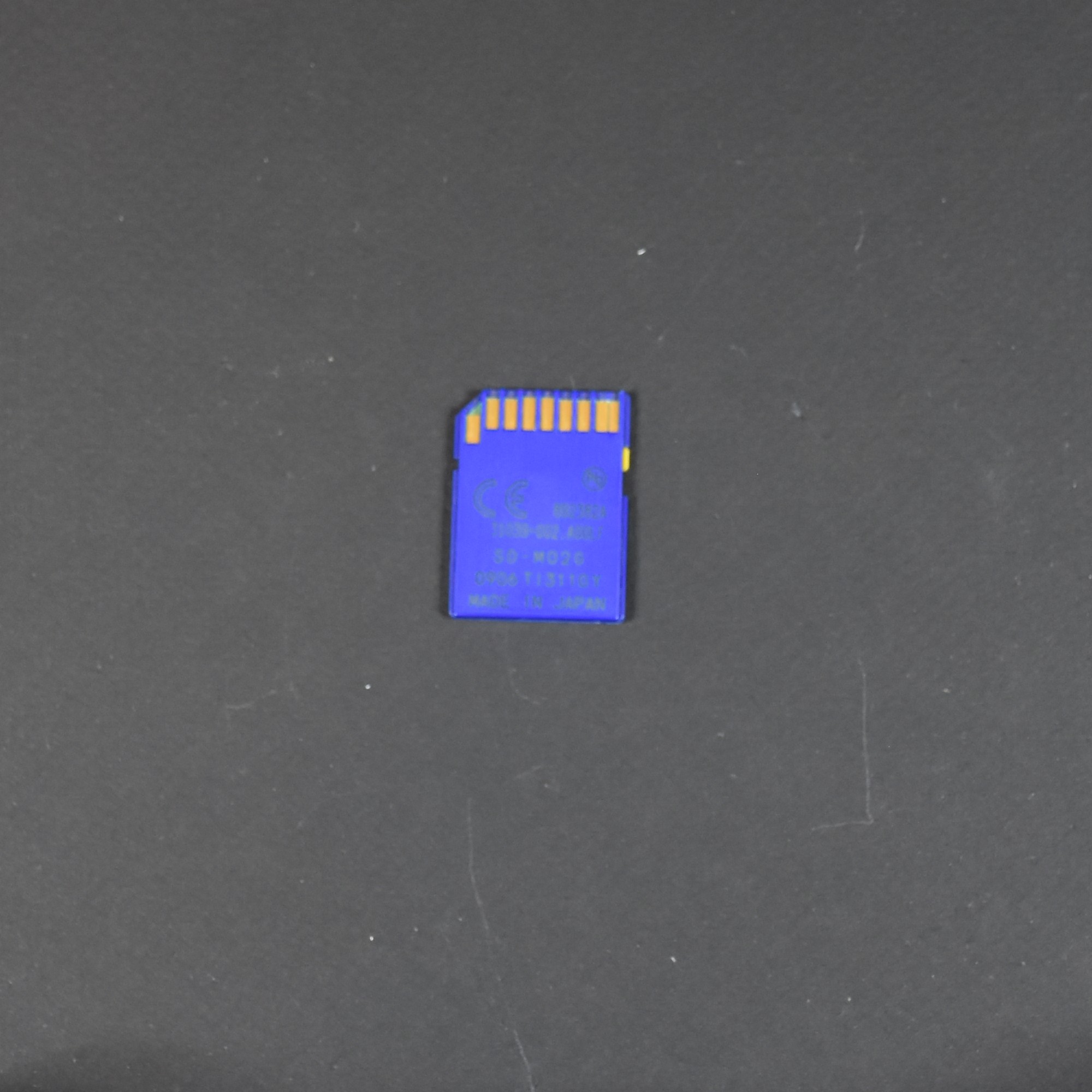

Item: SD-32

SD card with FAT32 format

Used to update operating software when required.

Note:

  • A single SD card can be shared between several machines.

  • The SD-32 is not compatible with older controller types

  • A SD-16 can be used with a MDBVMC300 controller.
