VCM100 CONTROLLERS

Controller upgrade for popular vending machines sold under names such as Sorrento, BV series, VM series, SVA series, etc.

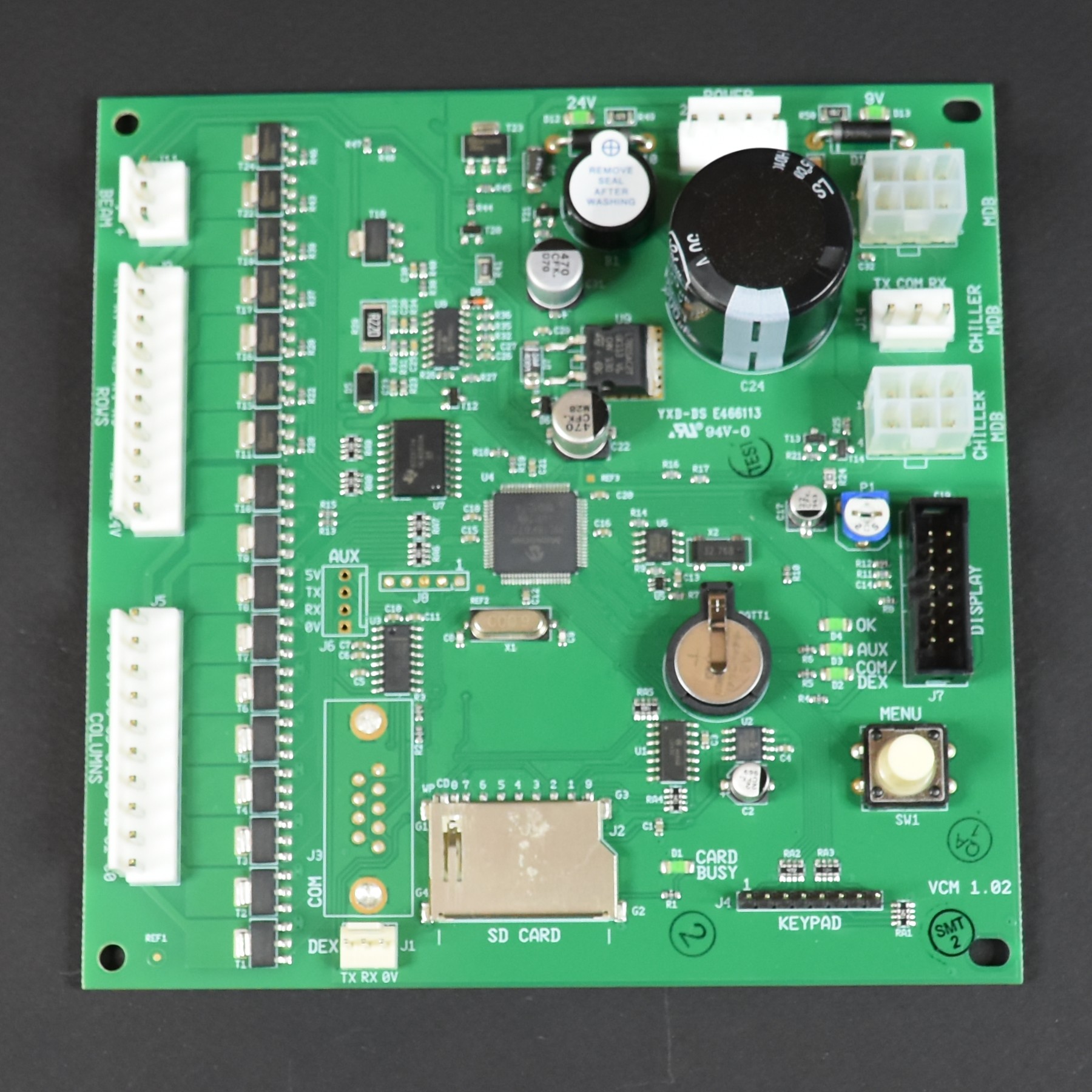

Item: VCM100-14

Suitable for machines with 14 WAY Display Ribbon Cable

  • Programmed with version 1.xx software installed.

Refer to the VCM100 ACCESSORIES section below and order the following optional items as required.

  • DEX interface cable

  • SD-16

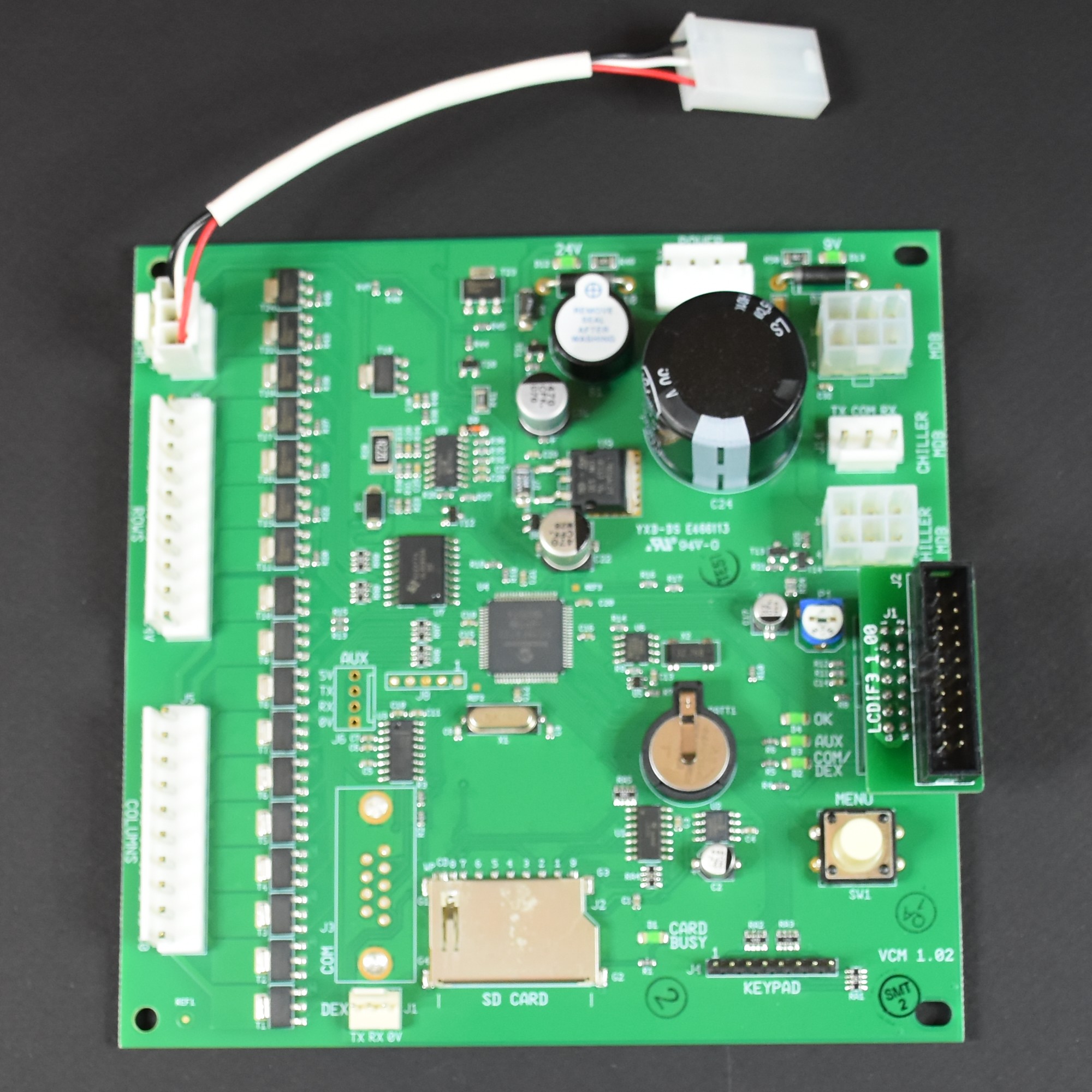

Item: VCM100-20

Suitable for machines with 20 WAY Display Ribbon Cable

  • Programmed with version 2.xx software installed.

  • Supplied with 20 Way ribbon cable adaptor

  • Supplied with Drop Sensor adaptor cable

Refer to the VCM100 ACCESSORIES section below and order the following optional items as required.

  • DEX interface cable.

  • SD-16

VCM100  ACCESSORIES

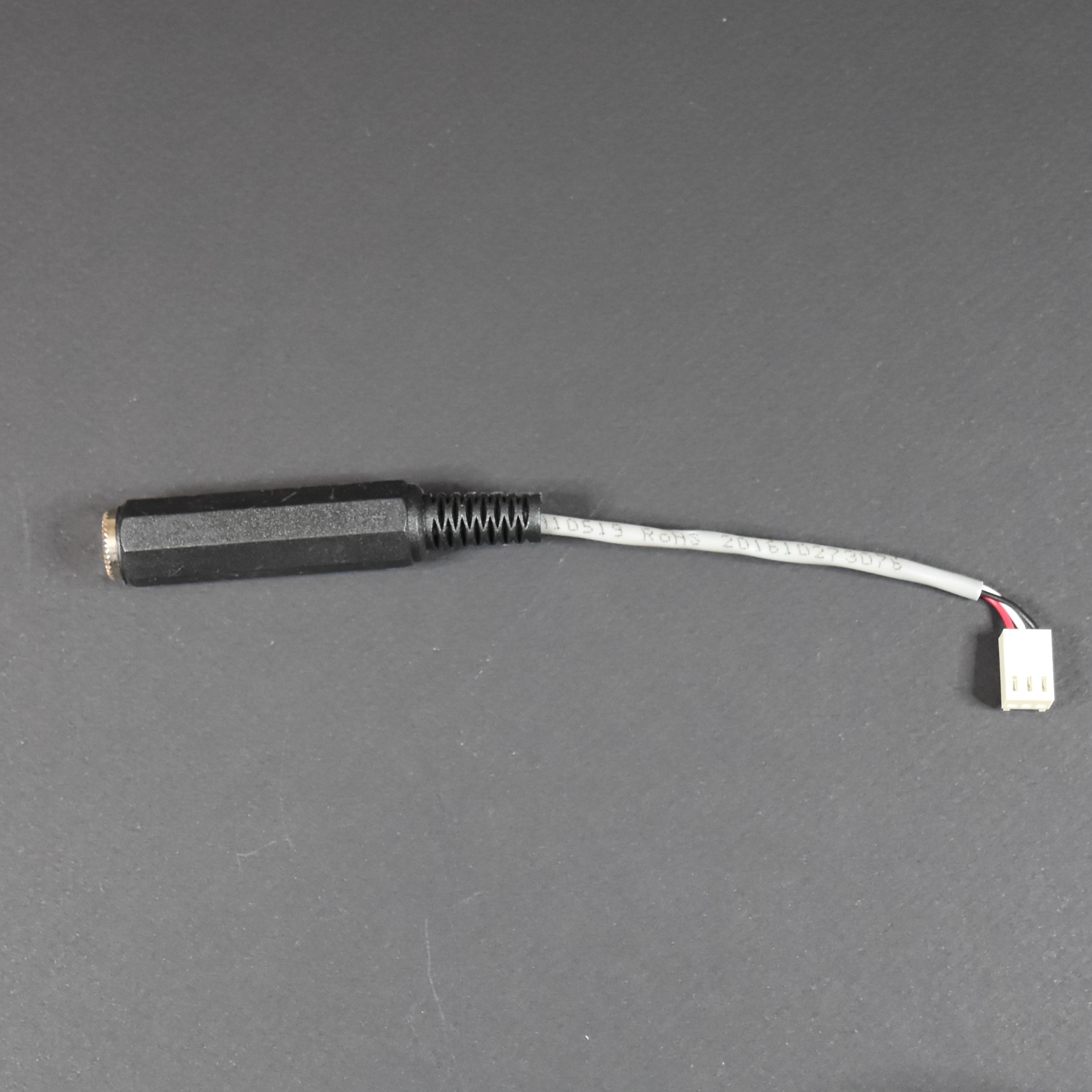

Item: DEX-CABLE

Dex interface harness used to connect the controller to a DEX readout device via a 1/4 inch Stereo jack.

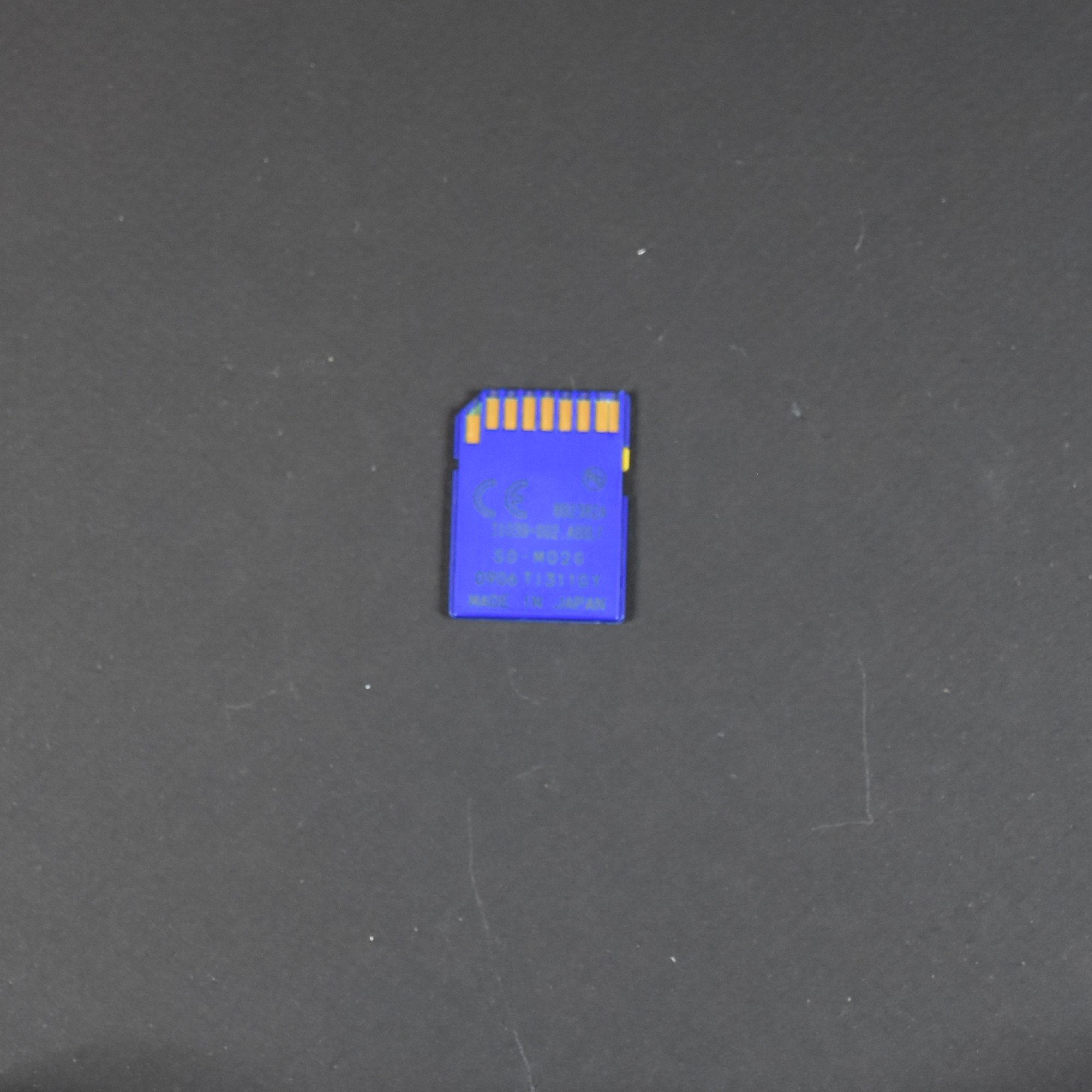

Item: SD-16

SD card with FAT16 format.

Used to update operating software when required.

Note:

  • A single SD card can be shared between several machines.

  • A SD-32 can't be used with a VCM100 controller.
